Pneumatic Conveyor



Transporting powders, granules, and solid materials is a crucial step in production processes. Choosing the appropriate conveying system for moving powders between various machines can greatly influence the final product’s quality. Pneumatic conveyor systems offer the safest solution for product transport, eliminating the risk of contamination. These systems are widely used across different industries and can boost the productivity and efficiency of machines by up to 30%. Comprehensive pneumatic conveyor systems, equipped with loading and unloading features, are available for all industrial needs.



Can be used for:

  • Coffee
  • Powder, premix
  • Dried food

Pneumatic conveyors for dense phase conveyance of dust, granules and solids

Pneumatic conveying in dense phase foresees a high concentration of product in the pipes and a lower percentage of air compared to the diluted phase. This means that the product is transported in a slower and more compact way inside the pipes with higher depressions, creating real product bundles.
In this configuration the material will tend to move in a compact and slower way inside the pipes, it is therefore indicated if you want to preserve the product and not demix it.

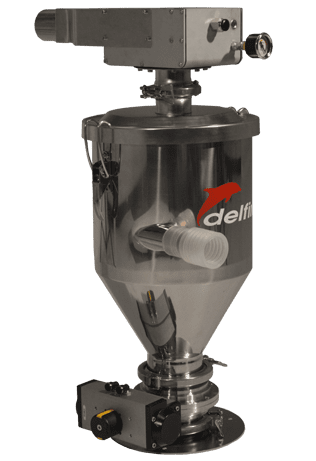

Short distance

Extremely compact conveyors for the efficient short-distance transport of dry and light powders. Transport with the best value for money of the product range.

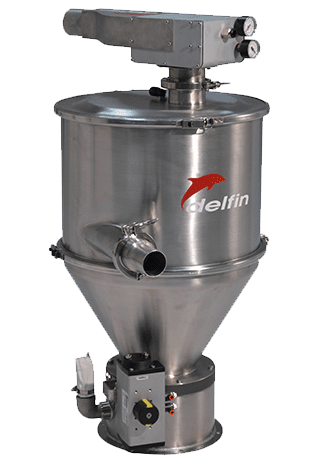

Long distance

Pneumatic conveyors for the long-distance transport of powders and granules. This unit can be extremely tailored to fit customer’s needs, thanks to the modularity of the components: separated or integrated suction units that can be boosted at a later time, without having to replace the entire pneumatic conveyor. Multiple construction options for the total integration on customer’s machinery and for constructive needs. Top quality conveying.



Electrical pneumatic conveyors for diluted phase conveyance

The pneumatic conveying in diluted phase provides a lower concentration of product in the pipes with a higher percentage of air than in the dense phase. This means that the product is transported very quickly and in a diluted way inside the pipes with relatively low depressions.

In this configuration the material will tend to float inside the pipes, so it is not indicated if you want to preserve the product or not to mix it.

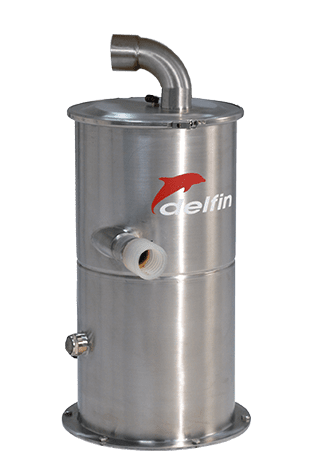

Short distance

Extremely compact single-phase conveyors for the efficient short-distance transport of dry and light powders. Transport with the best value for money of the product range.

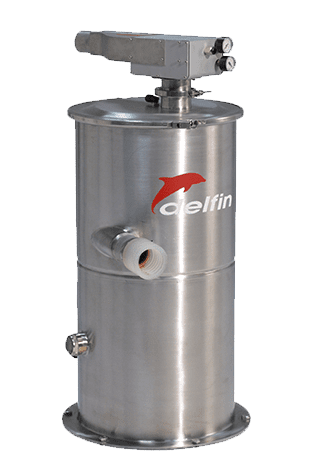

Long distance

Single-phase or three-phase conveyors for the long-distance transport of powders and granules. This unit can be extremely tailored to fit customer’s needs, thanks to the modularity of the components: separated or integrated suction units that can be boosted at a later time, without having to replace the entire pneumatic conveyor. Multiple construction options for the total integration on customer’s machinery and for constructive needs. Top quality conveying.
