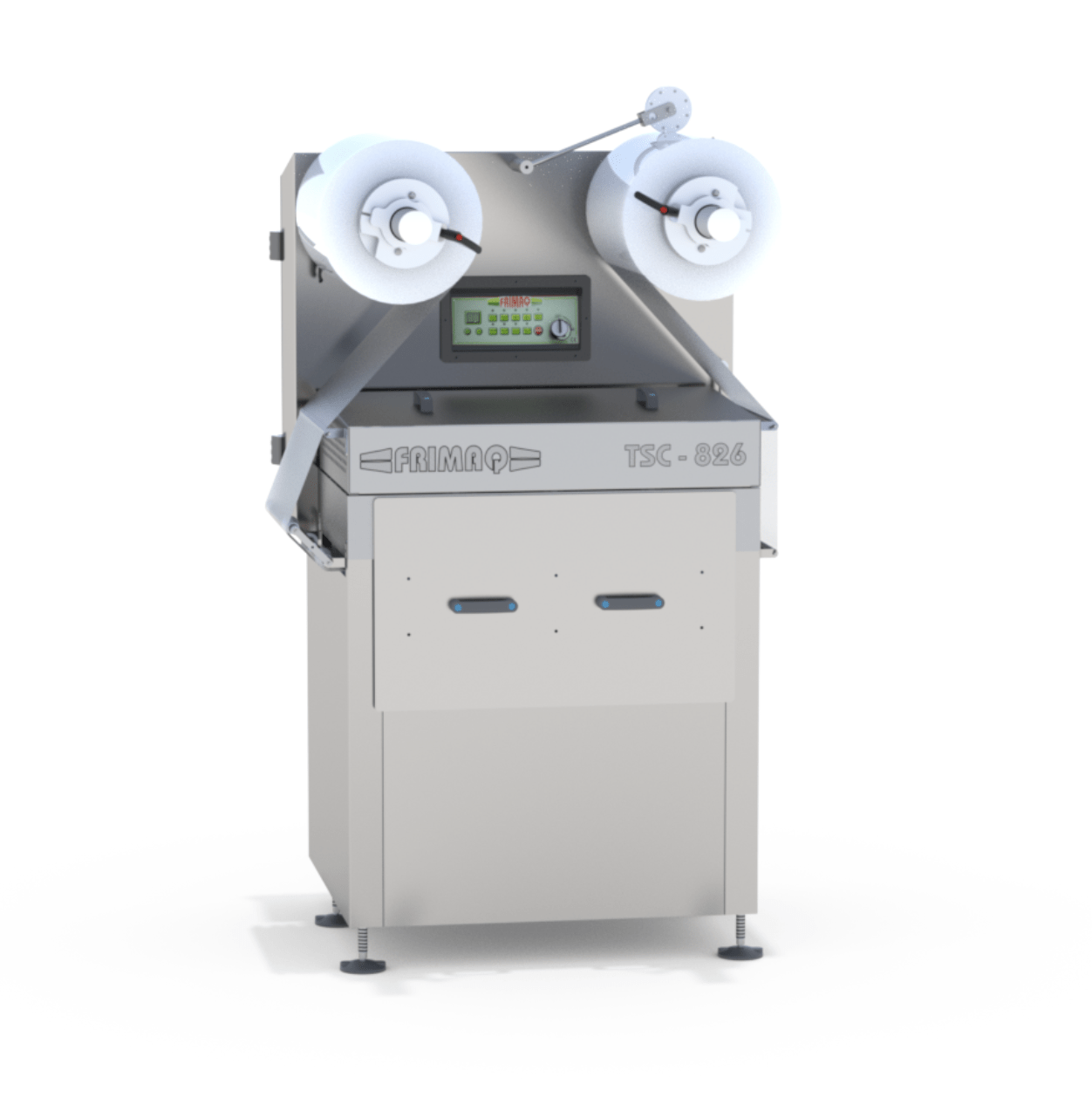

Semiautomatic Traysealer TSC – 826

Production of 200-300 trays per hour

• Structure in stainless steel AISI 304.
• Touchscreen with 25 programs.
• Vacuum by millibars and time, or both.
• Gas injection millibars and time over gas.
• Temperature control probe.
• Manual lowering of the hood.
• Vacuum pump 25 m3/h.

• Capacity for 1 – 1GN tray.
• Capacity for 2 – 1⁄2 GN trays.
• Capacity for 3 – 18×25 trays.
• Or the model chosen by the customer.
• Film width tray +100.

• Cutting of the trays independently.
• Three phases 380v. 3P+N+T.
• Power 5000 W.
• Approx. performance 80 cycles/h. (Including loading and unloading time).
• Connected to the compressed air network.
• Compressed air consumption: 290 liters/minute/6 bars of pressure.
