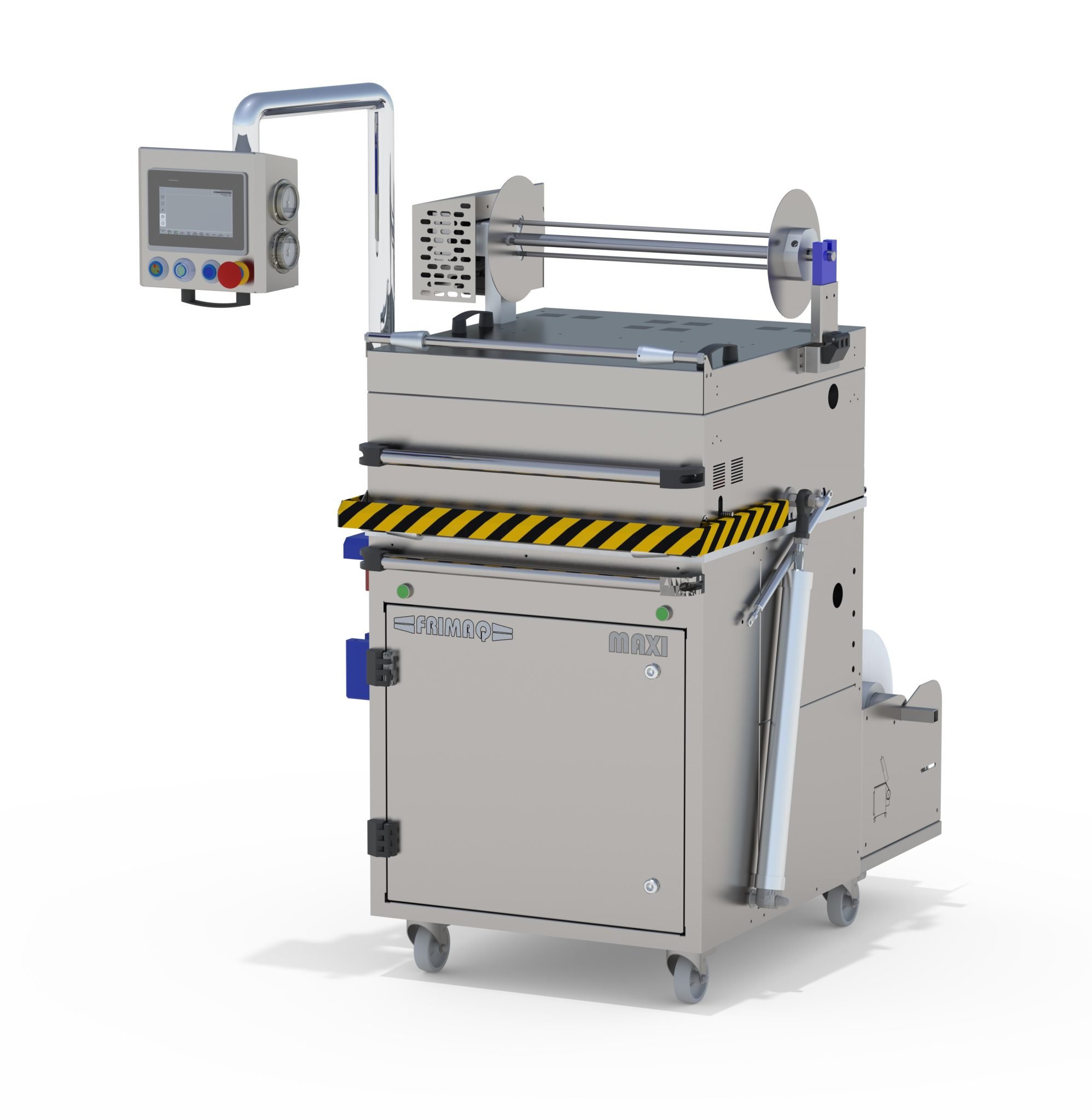

Semiautomatic Maxi Heat Sealer skin +40

Production of 80-300 trays per hour.

Our semi-automatic traysealer models are designed for low and medium productions. Without skimping on quality and details, our Mini and Maxi machines allow packaging in all types of materials from prefabricated trays and even flat cardboard, and with different packaging systems.

FEATURES:

  • Structure in stainless steel AISI 304.
  • Touchscreen with 25 programs to be accommodated to different products.
  • Vacuum by millibars and time, or both.
  • Temperature control probe.
  • Automatic lowering of the hood.
  • Vacuum pump 100 m3/h.
  • Capacity for 1 tray 1 GN.
  • Capacity for 2 trays 1⁄2 GN.
  • Capacity for 4 trays 1/4 GN.
  • Capacity for 6 trays 1/6 GN.
  • Capacity for 8 trays 1/8 GN.
  • Capacity for 4 cardboards 190 x 260 mm.
  • Or the model chosen by the customer.
  • Film width: 540-550 mm.
  • Cutting of the trays independently.
  • Three phases 380v. 3P+N+T.
  • Power 5000 W.
  • Connected to the compressed air network.
  • Compressed air consumption: 290 liters/minute/6 bars of pressure.

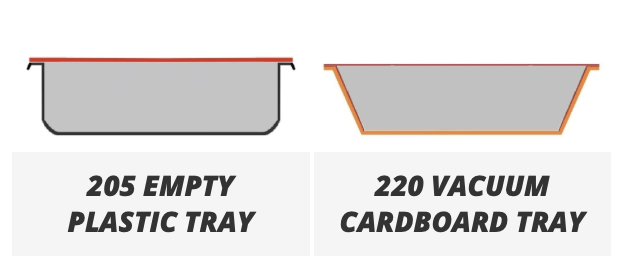

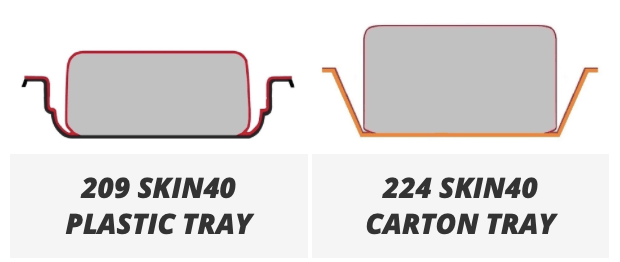

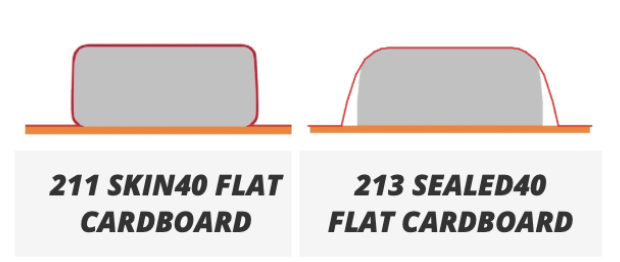

PLASTIC CARDBOARD

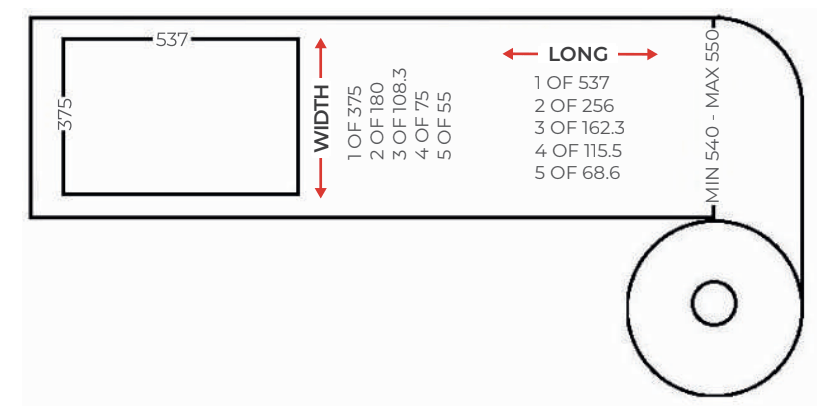

CUTTING BLADE MEASURES
