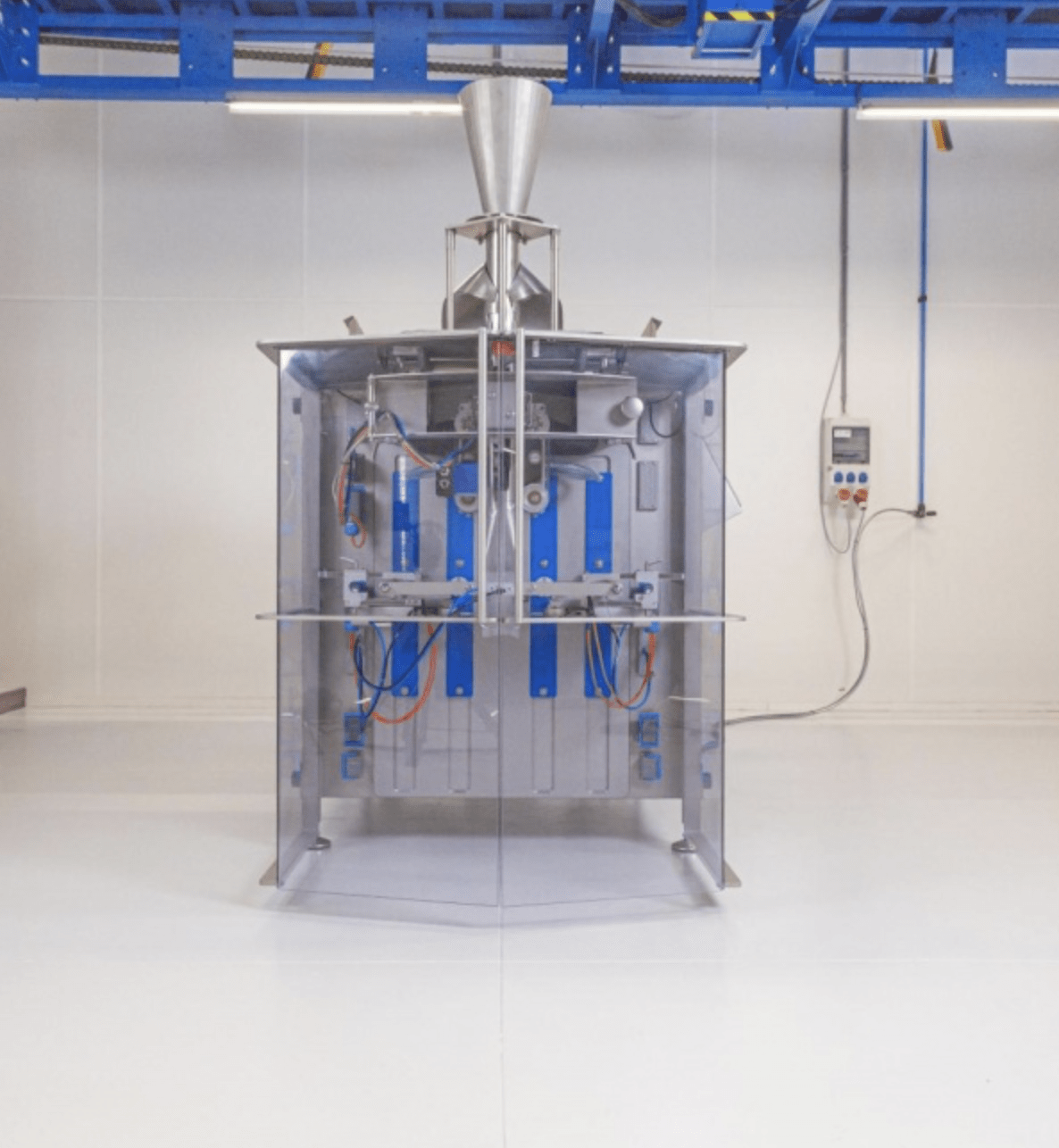

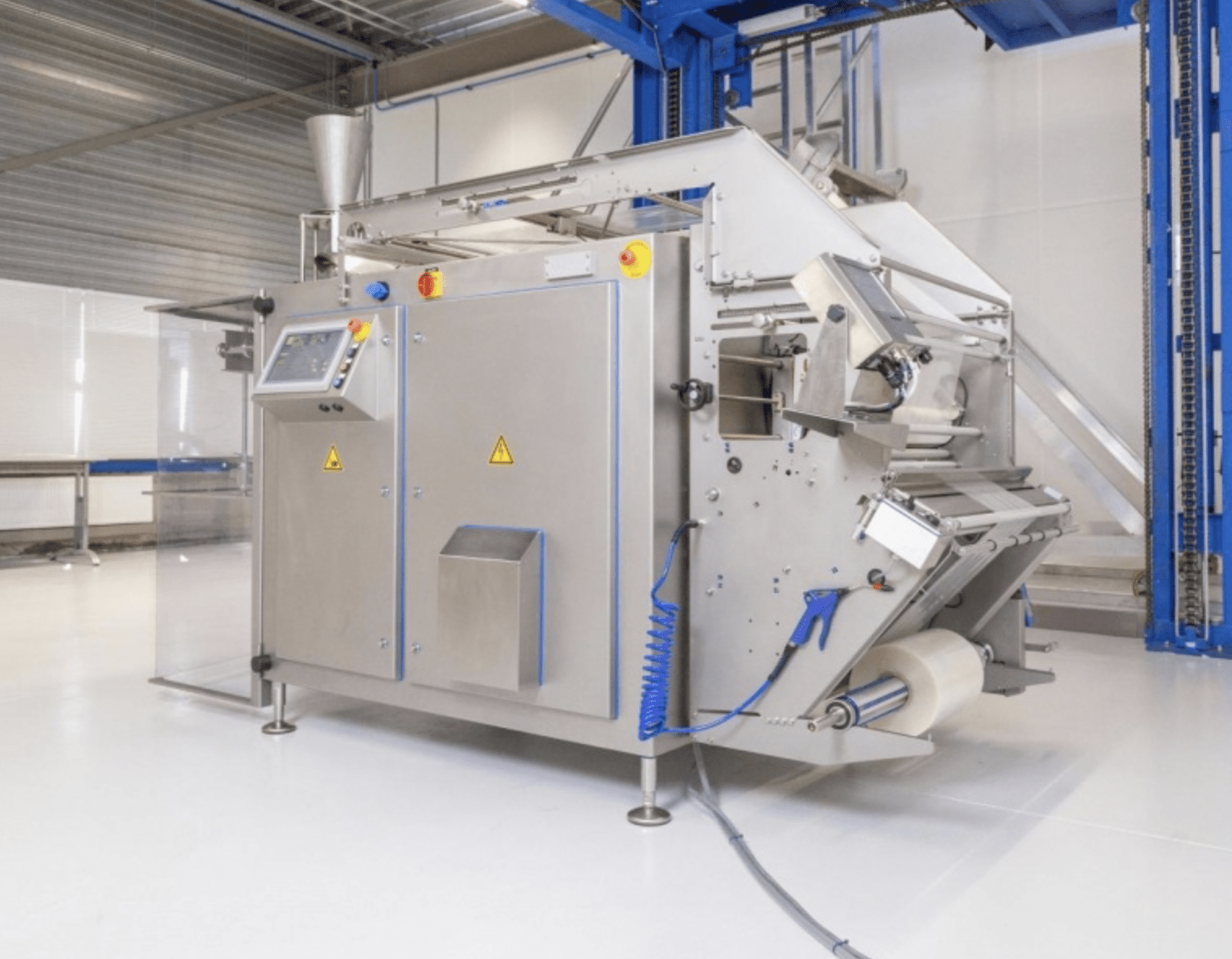

UVA Dynamic Pure

Immensely flexible bagmaker

If you don’t need a complete washdown machine but still want the highest standard of hygiene, we have developed the UVA Dynamic Pure. It’s an IP55 hygienic bagmaker, built on the same frame as the Hydro but fitted with covers for ventilation and cooling.

The VDL Dynamic Pure is designed with expandability and hygiene as the top priority. VDL Packaging has focused on developing options for various markets that can be added to a basic machine either during production or after installation at the customer’s plant. These options include four-corner seals, air deflation, press-to-close zipper, air valve, and more.

The UVA Dynamic Pure is an advanced and highly flexible bagmaker, offering the ability to expand in the field based on market requirements.

Benefits

  • An IP55 washdown VFFS Machine, every exposed part is designed to withstand thorough washdown cycles
  • Sloped surfaces on the sheet metal frame, doors and former set to prevent contamination and bacterial growth
  • Stainless steel film carrier, designed with sloped surfaces
  • 180° degree front opening for easy accessibility and cleaning
  • Option to expand and upgrade our modular design at any time, for even more bag styles and bag options
  • Electro cabinet cooling with hygienic and  waterproof rubbers
  • Build in touchscreen in an 30 degree angle (IP66) (rotatable and tilt able HMI support optional)
  • Optional ceramic sealing bars for improved film use, mono layer film and more safety
  • Engraved rulers
  • One machine for multiple bag styles and sizes
  • Washdown IP66 enclosure for Continuous Motion and Horizontal Motion for gusset blades
  • Full stainless steel forming set
  • Washdown splicing table
  • Fast and easy film guiding corrections in film web due to spring loaded guiding rollers simple to remove and clean
  • Cables guided through the frame, protected from liquid and residues
  • The UVA Dynamic Hydro is our washdown (IP66) model

UVA Dynamic Pure can for example be used for:



  • Vegetables
  • Fruit
  • Cheese
  • Poultry
  • Meat
  • Salad
  • Confectionery
  • Snacks, nuts
  • Powders

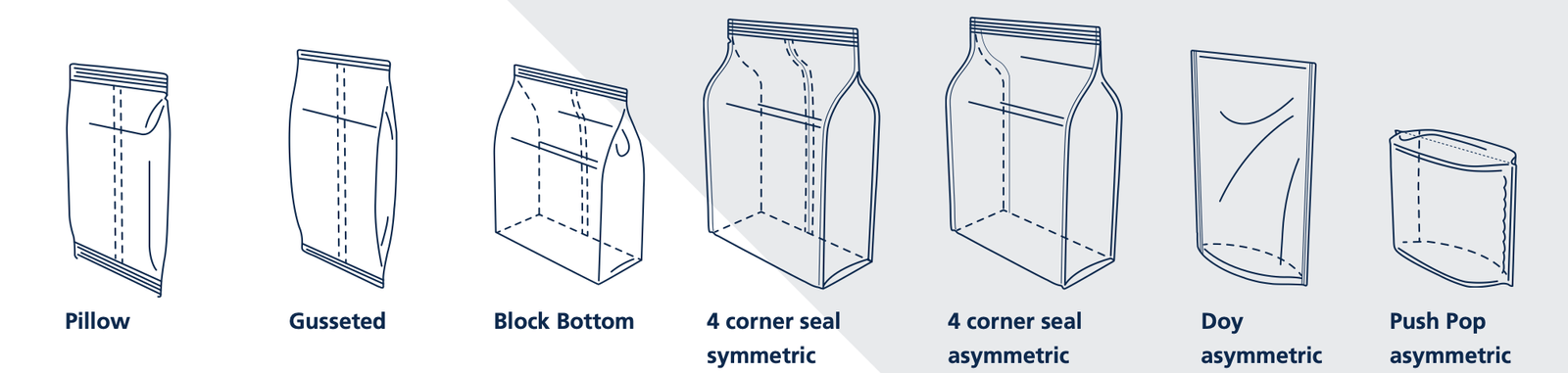

Bag styles and dimensions
